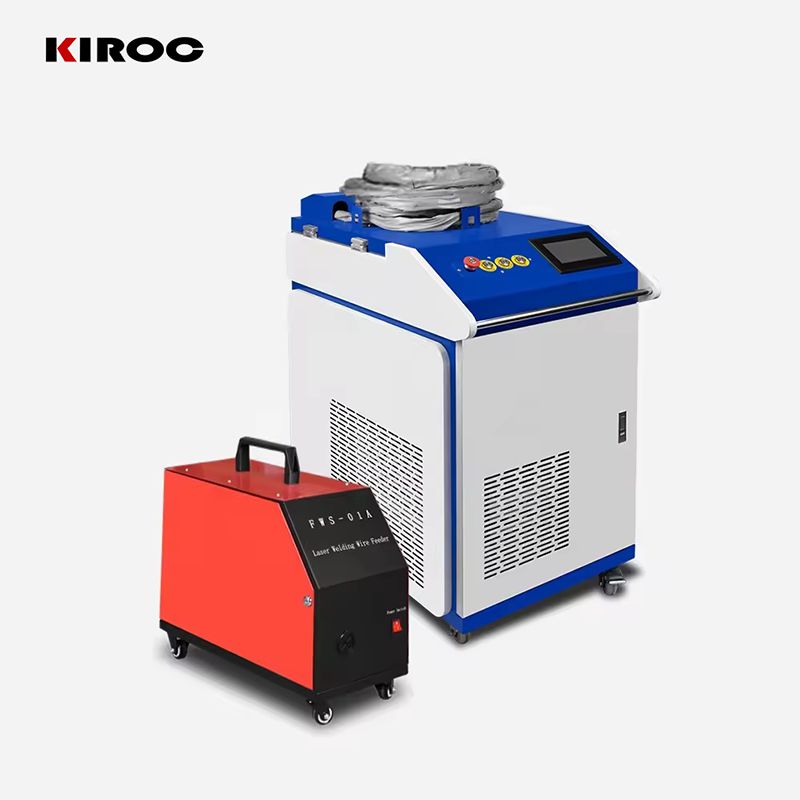

KIROC laser welding machine can be widely used in metal equipment, stainless steel homeand other industries complex irregular welding process.
Simple operation, greatly reducing labor costs.
Indirect radiation is small.
Fast speed and efficiency is 3-8 times that of argon arc welding.
Concentrated energy and little influence of thermal deformation.
Fine welding seam, deep molten pool, high strength.
Very thin materials can be welded, such as 0.05mm stainless steel.
Both autogenous welding and additive welding are OK.
| Laser Type | Fiber Laser |
Laser Source | MAX/Raycus/RECI |
Laser Power | 1000W/1500W/2000W/3000W |
Laser Wavelength | 1080±10nm |
Output Power Instability | ＜2% |
Output Power Tunability | 10-100% |
Fiber Laser Optic Length | standard 10m / 15m / 20m |
Cooling Way | Water-cooling |
Cooling Medium | purified water, distilled water, high-purity water |
Tank Capacity | 13L/16L |
Laser Head | Gefassst SUP/Relfar/QiLin |
Laser System | Gefassst SUP/Relfar/QiLin |
Wobble Width | 0-6 mm |
Spot Size | ﹤5mm |
Welding Mode | straight line, fish scale, spot |
Auxiliary Gas | Nitrogen/Argon |
Cleaning Width | 40mm |
Voltage | 220V/380V/Customized |
Working Environment Requirements | 10℃~40℃, humidity﹤70% |
